XF1 INTEGRA CARBON AXS - Best in class.
Equipped with the NEW BROSE S-MAG motor with 90 Nm max torque, Fantic 630Wh compact battery, new Carbon frame, 150 mm to travel and wireless groupset SRAM X01 EAGLE AXS.
Pinnacle of trail bikes. XF1 CARBON 150 AXS features the all-new SRAM AXS-X01 12-speed groupset, high-end components and an exclusive carbon frame. Best in class, it allows you to go wheel to wheel with the best riders and get the upper hand. INTERGRA CARBON AXS is a MEGABIKE
E-MTB CARBON NEWS.
1 -Integrated magnet in the disc & hidden sensor / Shorter rear triangle and Higher responsiveness /New Integrated chain stay shield & chain guide.
2 - New frame desing / Available in 3 size: S - M - L.
3- Ensures a better pedalling (With Narrower Motor Q factor) / Improved kinematics; Ensures endless contact with the ground.

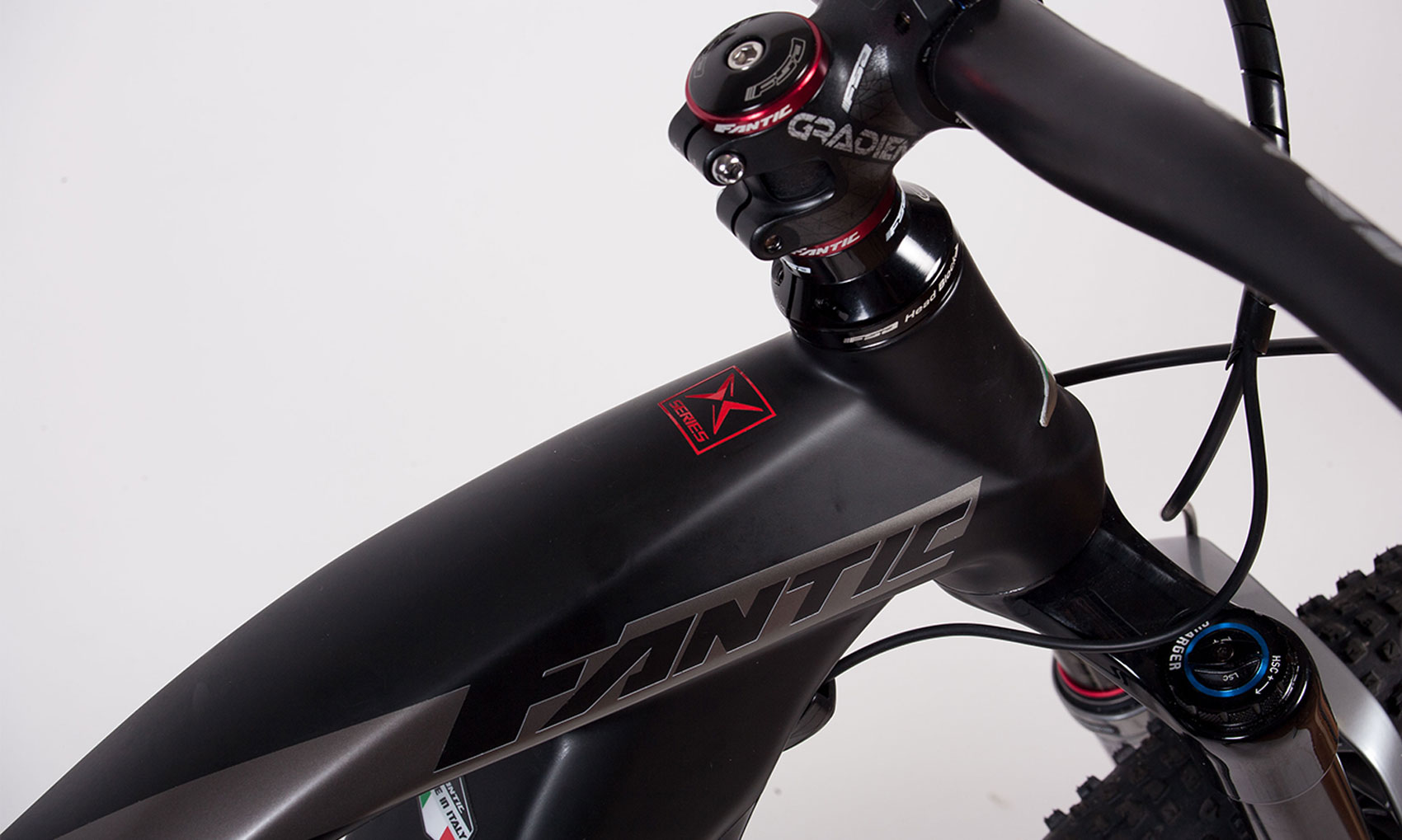

4- Headset lock, prevents the cables from being snatched / 3M Crystal 3D sticker, prevents the top & down tube from being striped.
5- Frame shield, prevents the frame from being damaged / Vented Motor cover, avoids Motor overheating.
The XF1 CARBON AXS is equipped with the new BROSE S-MAG engine, designed for extremely sporty e-mountain biking, ensuring a maximum torque of 90 Nm.
This engime is the best EMTB motor of the 2019 Ebike-mtb: the best emtb motor 2019
Brose Drive S Mag is more compact, lighter (only 2,8Kg), no pedaling resistance when switched off and delivers instant power output to achieve a more controlled start on steep hills.
Runs extremely quietly with hardly any vibration,
provides exactly the right amount of extra power.
All this contributes to became the XF1 CARBON AXS an refernce E-MTB in the Enduro market.

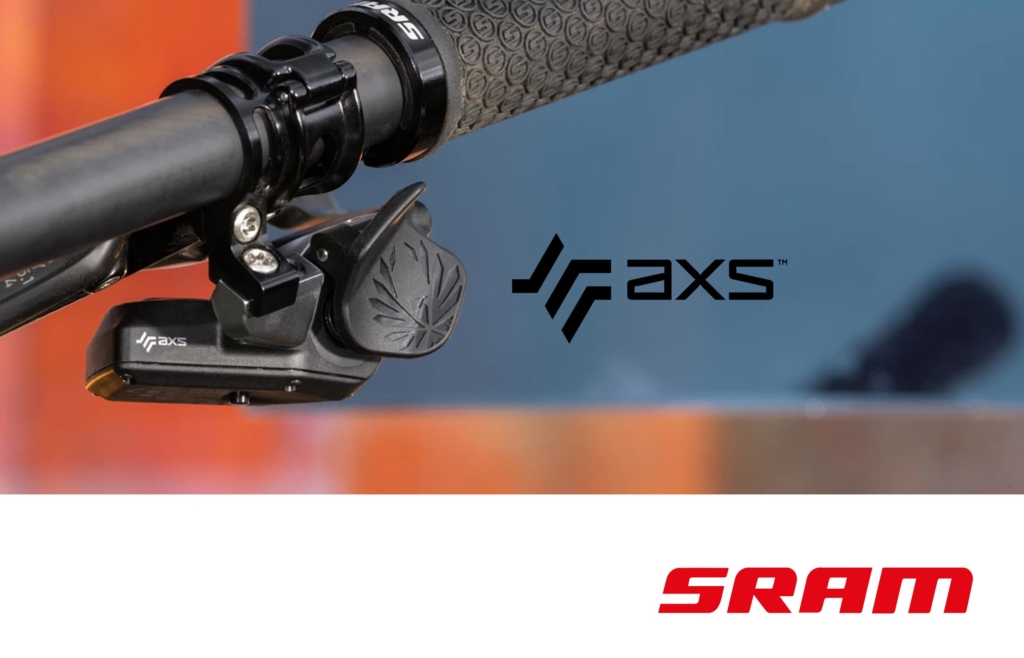

The Eagle AXS™ brings the real benefits of wireless electronic shifting to the mountain bike.
On a deeper level, it offers discerning riders unprecedented personalization and control of the drivetrain.
With completely new inputs at the bar that initiate a shift with a touch.
It’s an all-new derailleur that’s specifically designed and optimized to be motor-driven instead of cable-actuated, to truly leverage what this allows.
AN ELECTRONIC DRIVETRAIN MADE FOR THE MOUNTAIN. FINALLY.
We are a premium e-bike brand, determined to enhance our customers’ experience.
Fantic makes a point of engineering, designing and assembling everything in house..
Our focus is on uncompromised design & technology.
WE ARE MADE IN ITALY.
| INTEGRA CARBON AXS | TECHNICAL SPECIFICATIONS |
| Motor | Brose S-Mag 36 Volt, Max power: 250 Watt, Torque/Coppia: 90 Nm |
| Battery | Fantic Integra, Lithium Ion, 36 Volt, 630Wh |
| Display | Brose-Marquardt multifunctional display & push-assistance selection unit |
| Frame | Carbon new frame, Sizes: S - M - L |
| Fork | RockShox PIKE ULTIMATE 29" 150mm |
| Shock | RockShox SuperDeluxe Select+ T205-57,5 Air |
| Groupset | Sram AXS-X01 Eagle 12V |
| Crankset | FSA Isis 170mm |
| Cassette | Sram X-Glide Rainbow 12V 10-50 |
| Chain | Sram PC XX1 12V Rainbow |
| Front brake | Sram G2 Ultimate |
| Rear brake | Sram G2 Ultimate |
| Tires | MAXXIS Recon Race Front 29" x 2,35 / Rear 27.5" x 2,6 120TP I- TLE |
| Wheels | FSA K-FORCE WideR25 front.29 c25 / rear.27.5 c25 TLE |
| Front hub | FSA K-FORCE 110 mm Boost XD 28f |
| Rear hub | FSA K-FORCE 148 mm Boost XD 28f |
| Handlebar | FSA -Gradient Ø31,8 Carbon L.760m Rise15 |
| Stem | FSA-Gradient Ø31,8 Carbon L.50mm |
| Seatpost | Rock Shox Reverb ASX Ø30.9 |
| Saddle | SelleItalia X-LR Gel Flow |
| SIZE | S | M | L | |
| A1 | 390 | 440 | 490 | mm |
| B | 568 | 602 | 629 | mm |
| E | 461 | 461 | 461 | mm |
| H | 355 | 355 | 355 | mm |
| L | 1193,5 | 1222 | 1245 | mm |
| R | 403 | 435 | 458 | mm |
| R1 | 165 | 167 | 171 | mm |
| S | 604 | 612 | 626 | mm |
| S1 | 105 | 110 | 120 | mm |
| a° | 72 | 72 | 72 | |
| b° | 65 | 65.5 | 66 |
