XF1 INTEGRA CARBON 160 LIMITED EDITION.
Fantic has created the XF1 Carbon 160 limited edition for the riders who are looking for an E-MTB in carbon frame togheter with the authoritative components.

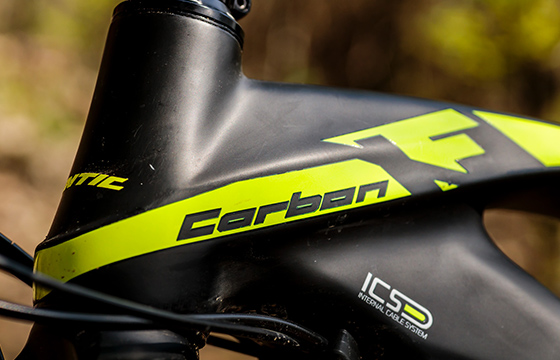

The carbon frame for a reactive experience and an elegant design.
The components like a Schwalbe tires, the SRAM NX 12-speed groupset, the RockShox forck with 160mm of travel and Miranda cranks, you can ride a performing and balanced E-MTB, perfect for every “cool” Rider.
We are a premium e-bike brand, determined to
enhance our customers’ experience.
Fantic makes a point of engineering, designing and assembling everything in house.
Our focus is on uncompromised design & technology.
WE ARE MADE IN ITALY.
| XF1 CARBON 160 LTD | CARATTERISTICHE TECNICHE |
| Motor | Brose Drive-S 36 Volt, Max power: 250 Watt, Torque/Coppia: 90 Nm |
| Battery | Fantic Integra, Lithium Ion, 36 Volt, 630Wh |
| Display | Brose-Marquardt multifunctional display & push-assistance selection unit |
| Frame | Carbon Enduro Frame, only size M |
| Fork | RockShox Yari RC 29" 160mm |
| Shock | RockShox DeLuxe Select+ T205-60 Air |
| Groupset | Sram NX e-click Eagle 12V |
| Crankset | MirandaDelta Isis 165mm Asym |
| Cassette | Sram NX Eagle 12V 11-50 |
| Chain | Sram SX Eagle 12V |
| Front brake | Sram GUIDE-T 4 Piston - |
| Rear brake | Sram GUIDE-T 4 Piston - |
| Tires | Schwalbe NOBBYNIC front 29" x 2.35 - rear 27.5" x 2.6 |
| Wheels | GMP by Fantic, F/R 29"/27.5", 32f, front C28, rear C33T, Tubeless ready |
| Front hub | Sram 716 RS, 110 mm, Boost, thru axle 15mm |
| Rear hub | Sram 716 RS, 148 mm, Boost; thru axle 12mm |
| Handlebar | FSA Ø31,8 L.760m Rise15 |
| Stem | FSA Ø31,8 L.60mm |
| Seatpost | Switch, height-adjustable dropper 100mm |
| Saddle | Fizik Taiga |
| SIZE | M | |
| A1 | 430 | mm |
| B | 600 | mm |
| E | 464 | mm |
| H | 358 | mm |
| L | 1228 | mm |
| R | 431 | mm |
| R1 | 170 | mm |
| S | 609 | mm |
| S1 | 110 | mm |
| a° | 73.0 | |
| b° | 65.0 |
