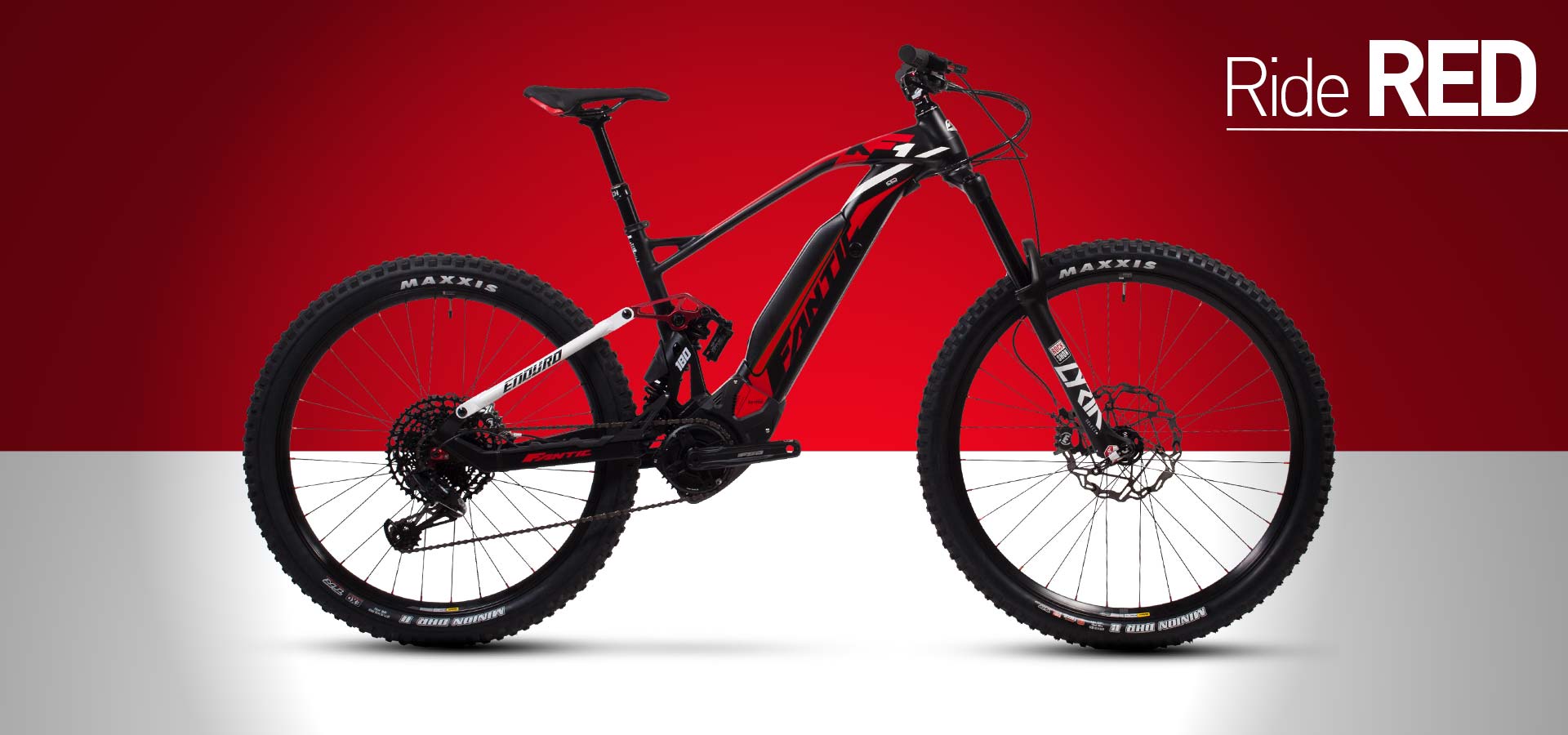

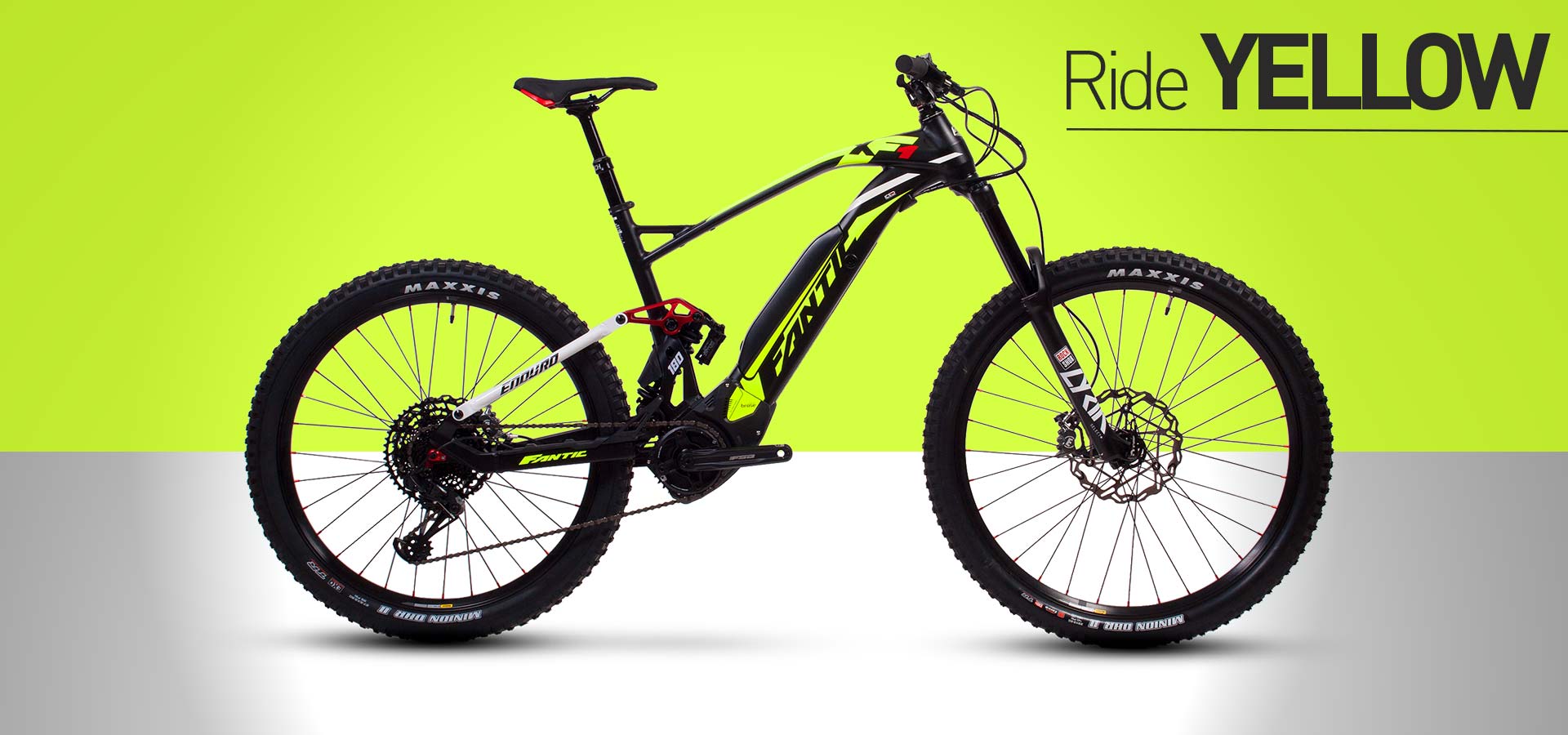

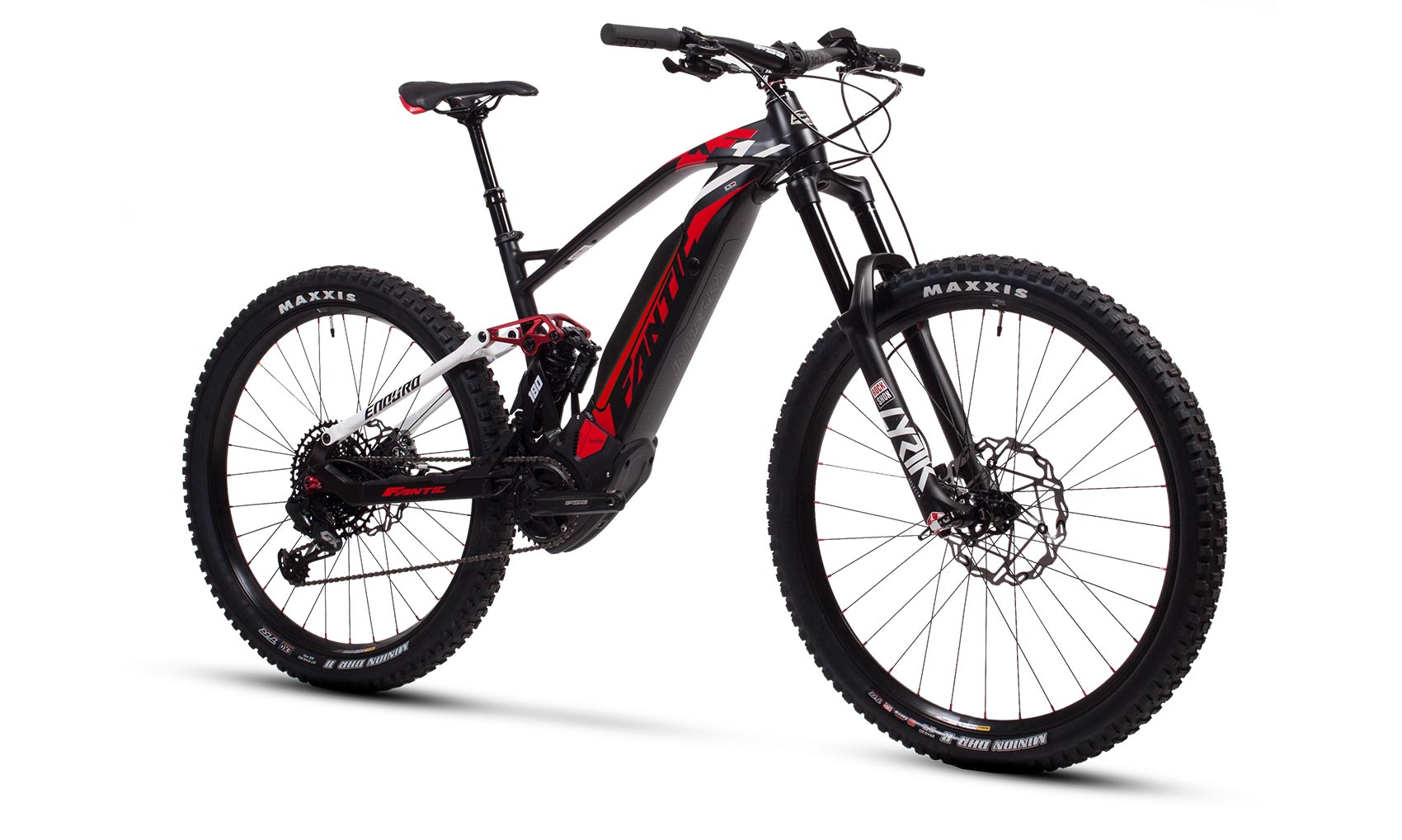

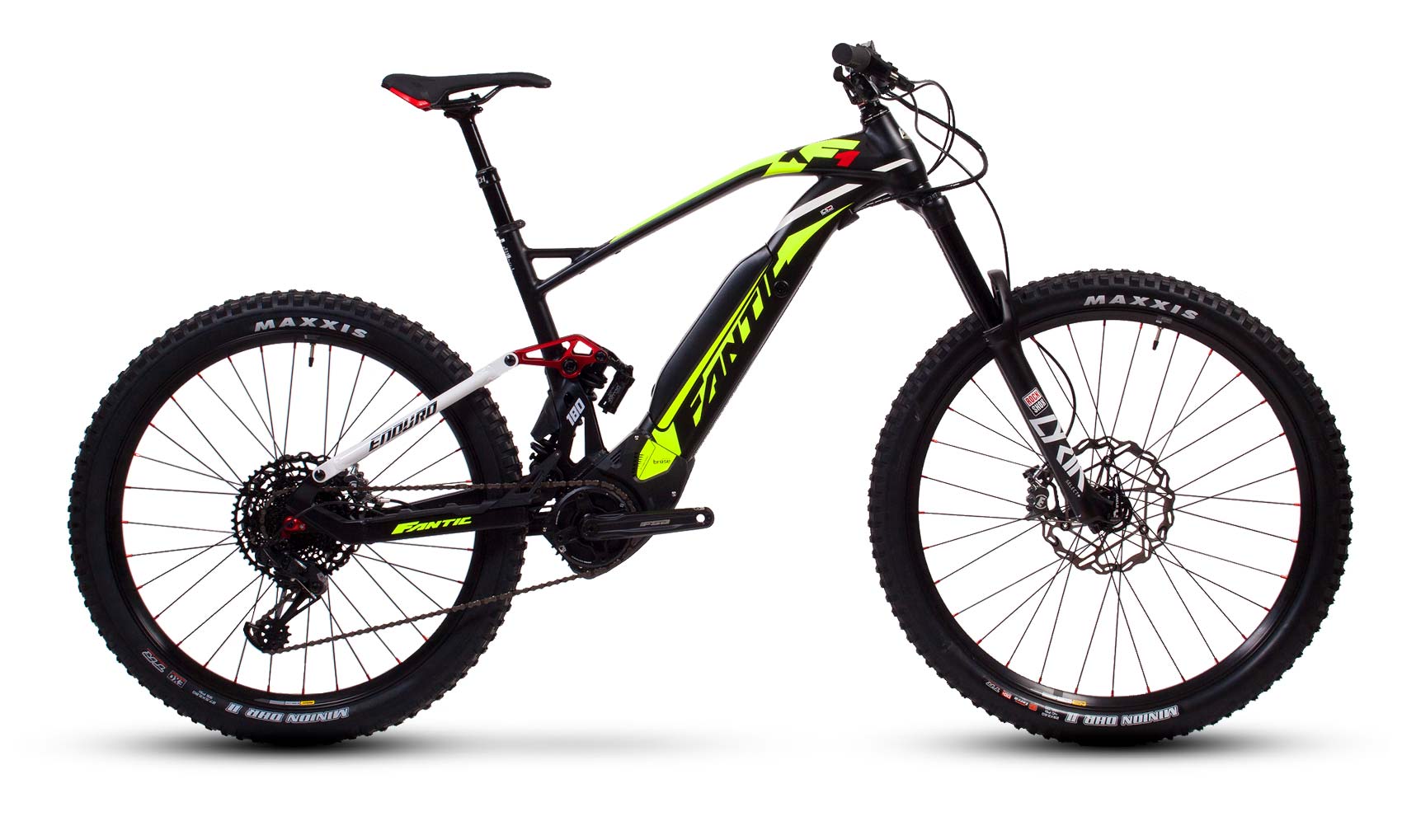

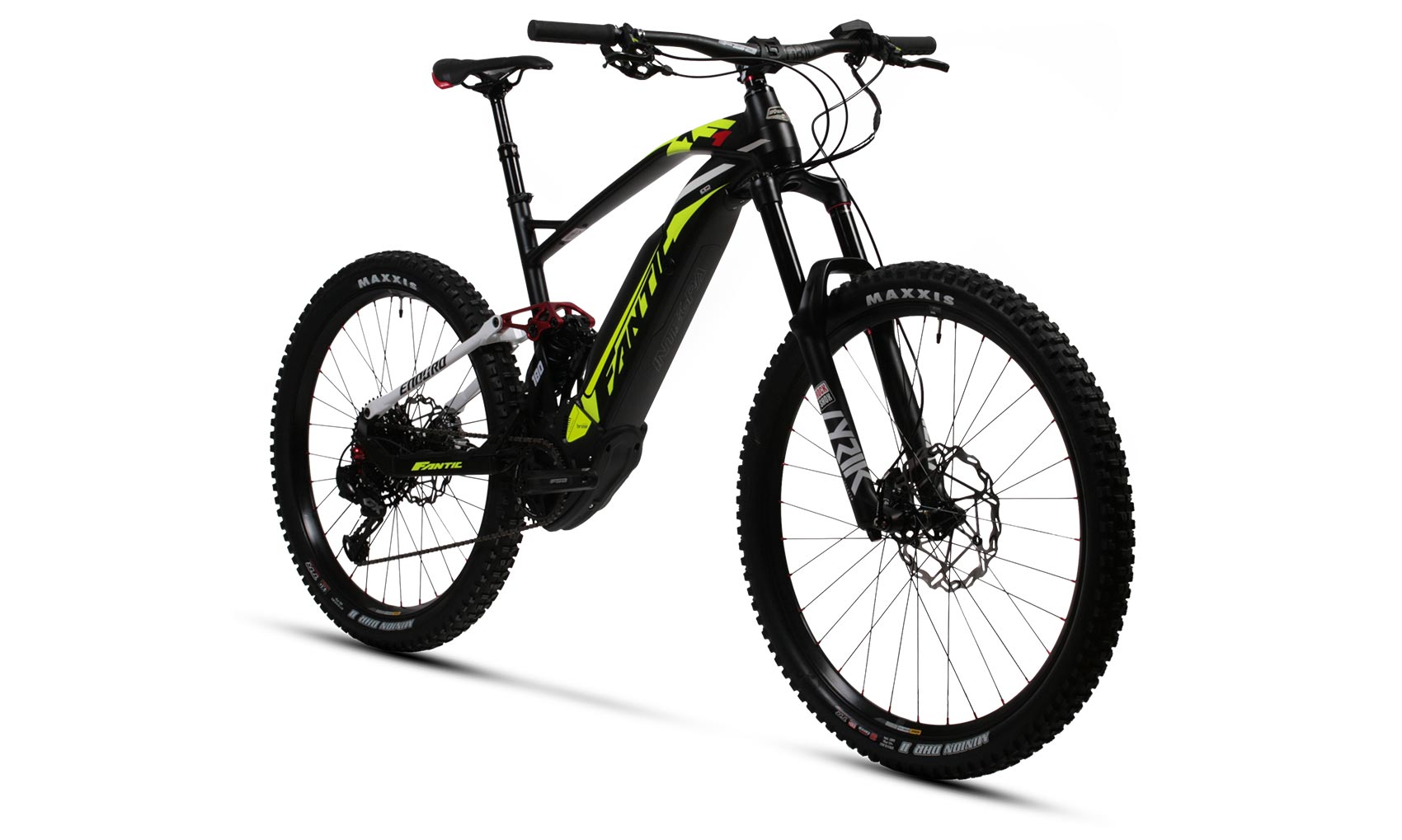

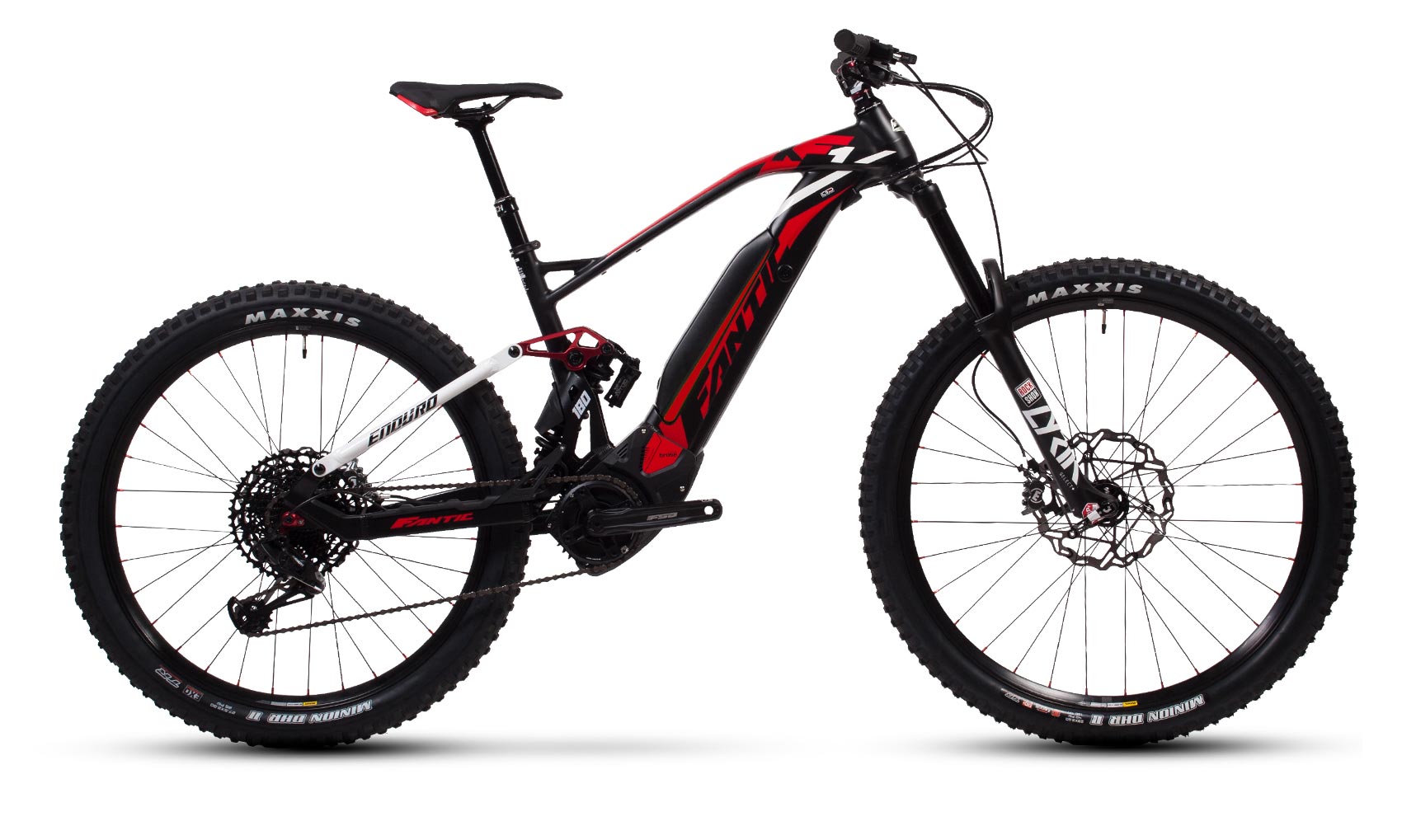

FANTIC XF1 INTEGRA 180 RACE - The most important E-MTB RACE by Fantic.
XF1 INTEGRA 180 has win the Design & Innovation Award 2018 for E-MTB Enduro category. This new version was centered design, performance and technology, for a TOP experience.

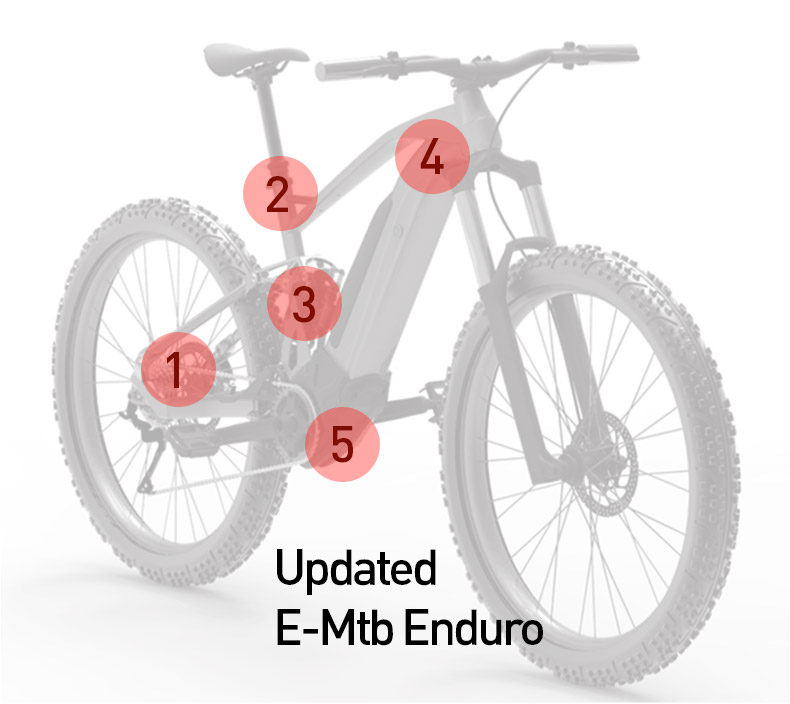

E-MTB ENDURO NEWS.
1 -Integrated magnet in the disc & hidden sensor / Shorter rear triangle and Higher responsiveness /New Integrated chain stay shield & chain guide.
2 - Bottle cage ready / Increased seat post travel (1cm on size S).
3- Ensures a better pedalling (With Narrower Motor Q factor) / Improved kinematics; Ensures endless contact with the ground.
4- Headset lock, prevents the cables from being snatched / 3M Crystal 3D sticker, prevents the top & down tube from being striped.
5- Frame shield, prevents the frame from being damaged / Vented Motor cover, avoids Motor overheating.

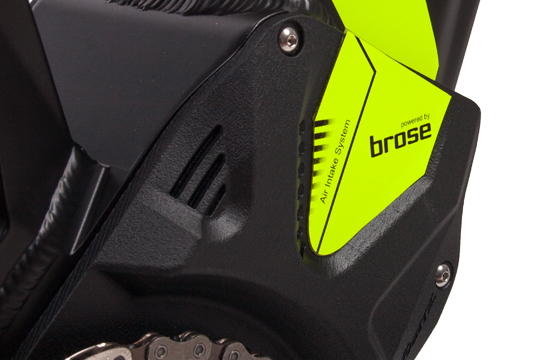

The XF1 180 is equipped with the new BROSE S-MAG engine, designed for extremely sporty e-mountain biking, ensuring a maximum torque of 90 Nm.
This engime is the best EMTB motor of the 2019 Ebike-mtb: the best emtb motor 2019
Brose Drive S Mag is more compact, lighter (only 2,8Kg), no pedaling resistance when switched off and delivers instant power output to achieve a more controlled start on steep hills.
Runs extremely quietly with hardly any vibration,
provides exactly the right amount of extra power.
All this contributes to became the XF1 180 RACE an refernce E-MTB in the Enduro market.
We are a premium e-bike brand, determined to enhance our customers’ experience.
Fantic makes a point of engineering, designing and assembling everything in house..
Our focus is on uncompromised design & technology.

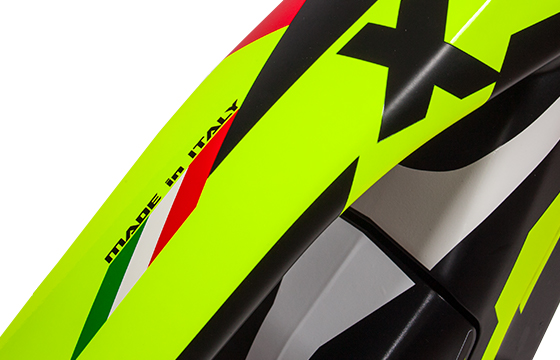

WE ARE MADE IN ITALY.
| INTEGRA 180 RACE | TECHNICAL SPECIFICATIONS |
| Motor | Brose S-Mag 36 Volt, Max power: 250 Watt, Torque: 90 Nm |
| Battery | Fantic Integra, Lithium Ion, 36 Volt, 630Wh |
| Display | Brose-Marquardt multifunctional display & push-assistance selection unit |
| Frame | Aluminium Enduro frame, CNC parts, Sizes: S - M - L |
| Fork | RockShox Lyric Select+ 29" 180mm |
| Shock | RockShox SuperDeluxe Coil Select+ T205-65 |
| Groupset | Sram GX e-click Eagle 12-speed |
| Crankset | FSA Isis 170mm |
| Cassette | Sram NX Eagle 12-speed 11-50 |
| Chain | Sram NX Eagle 12-speed |
| Front brake | MAGURA MT7 4-piston - Braking S3 Batfly 220mm disc |
| Rear brake | MAGURA MT7 4-piston - Braking S3 Batfly 203mm disc |
| Tires | Maxxis Minion DHR II 27.5" X 2.6 TLE |
| Wheels | Mavic E-XM - front 29" 32F c28 - rear 27.5" 32F c35 - T.ready |
| Front hub | Miche XMH 550 SH 110-Boost 32f - 6-hole Red Nipples |
| Rear hub | Miche XMH 550 SH 148-Boost 32f - 6-hole Red Nipples |
| Handlebar | FSA GRID Ø35 L.800mm - Rise15 |
| Stem | FSA GRID Ø35 L.35mm |
| Seatpost | Switch Ø30.9, height-adjustable dropper, S-M(100mm), L(125mm) |
| Saddle | SelleItalia X-LR Gel Flow |

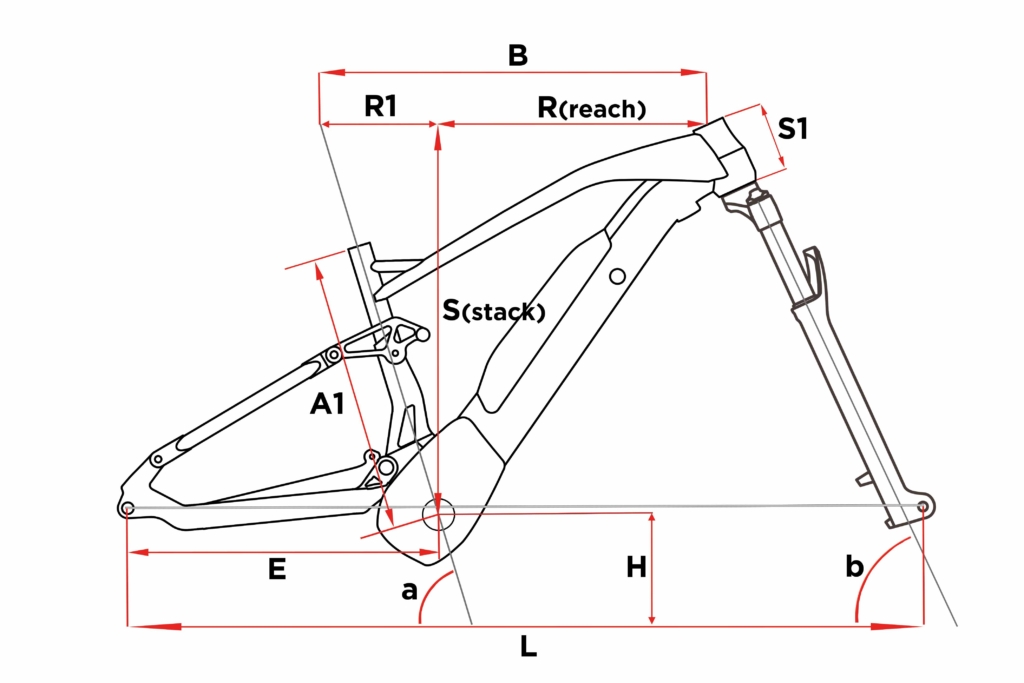

| SIZE | S | M | L | |
| A1 | 390 | 440 | 490 | mm |
| B | 570 | 604 | 631 | mm |
| E | 460,5 | 460,5 | 460,5 | mm |
| H | 368 | 368 | 368 | mm |
| L | 1206 | 1234.5 | 1257 | mm |
| R | 381 | 413 | 436 | mm |
| R1 | 189 | 191 | 195 | mm |
| S | 607 | 615 | 628 | mm |
| S1 | 105 | 110 | 120 | mm |
| a° | 71 | 71 | 71 | |
| b° | 64.0 | 64.5 | 65.0 |
