XF3 EASY - Hard Tail in “XS”.
XF3 EASY will let you discover rides with comfort and carefree. The smaller handlebar with its ideal bend promise a better position on the saddle and favors better handling in thigh situation. The wheel/tires, 27.5” front and rear, offers the optimal control on any ride. The XF3 Easy is our smallest bike and ideal for people that require a smaller frame to enjoy riding. The XF3 is offered also in XS size.
All Fantic bikes are equipped with a Brose motor, the leader in the industry. Our batteries are BMZ (from Germany) with 2 years warranty.
Fantic XF3 Easy: Technical Specifications
FANTIC XF3 Easy - Comfort handlebar L 620mm and available also in XS
The new Fantic XF3 Easy guarantees exceptional comfort thanks to its geometry and it’s available also XS-sized. A special aluminum handlebar with a length of 620mm has also been fitted to ensure handling between many urban or off-road obstacles. An absolutely technical bike, but also ideal for a for urban use or off-road trips. This new E-Bike of Fantic is designed by a team of specialists who has already won three world titles in off-road motorcycles race, guided by the skilful hand of Stefano Scapin.
FANTIC XF3 Easy
XF3 Easy is an E-Bike ideal for moving with the maximum agility and performance even in the most technical paths in the mountain. It integrates the best components which are available on the market to give the most safe and exciting driving experience for 365 days a year. The electric motor is manufactured by Brose, a leading German manufacturer of electric motors.
The battery pack is the German battery company BMZ, which is also a leader in this field, and the battery is guaranteed for 2 years. With a capacity of 417 Wh you may achieve autonomy of 120 km on flat terrain, or 60 km of challenging tracks. For the transmission Fantic choose to mount the American SRAM NX 11-speed groupset on the XF3. The hydraulic brakes are Level (SRAM Group) with a front disc of 180mm, the largest in the category.
The suspended front fork Fantic used for the bike is the Rock Shox Recon Silver with a travel of 100mm and OneLoc block system . The rims are made of aluminium, with the stainless steel spokes from the Italian company GiPiEmme, always specialized in productions cured in technique and aesthetics. The tires are from Vittoria (also Italian) with the dimensions of 27.5″ x 2.4″.
XF3 EASY | TECHNICAL SPECIFICATIONS |
Motor | Brose Midmount 36 Volt, Max power: 250 Watt, Torque: 90 Nm |
Battery | BMZ, Lithium Ion, 36 Volt, 417 Wh, 2 years warranty |

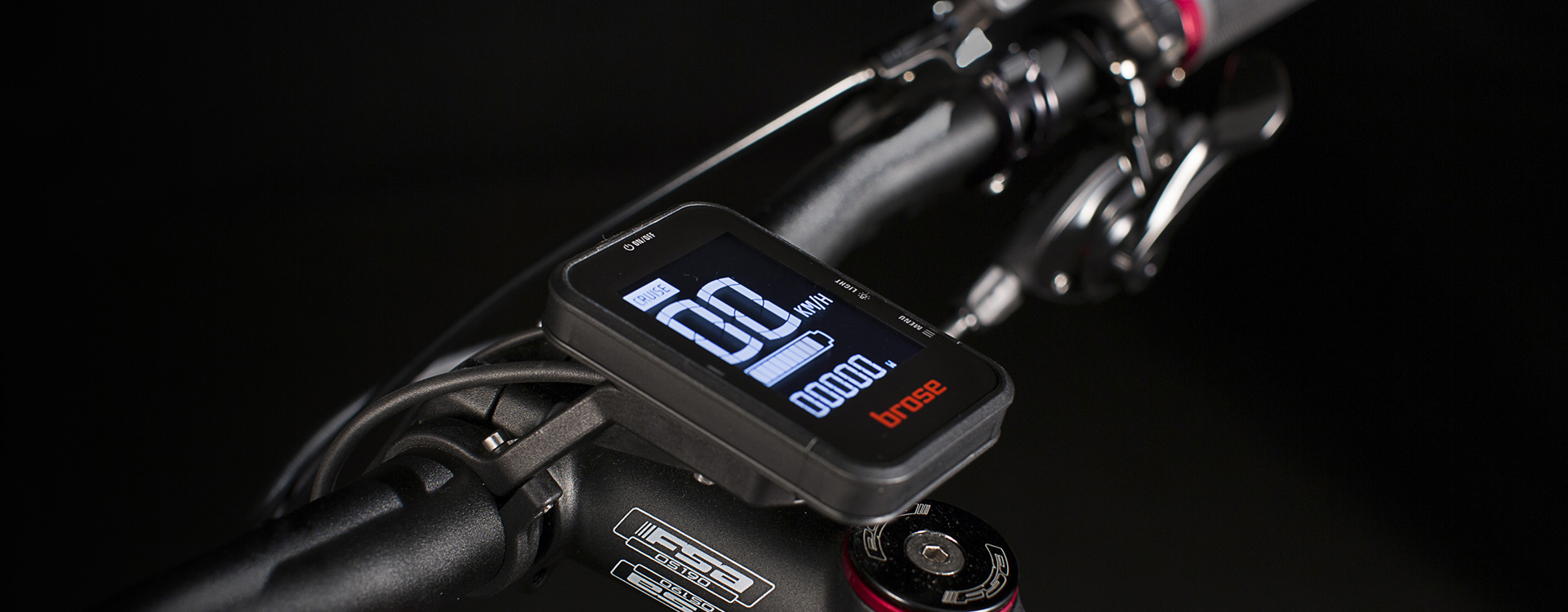

Display | Brose multifunctional display & push-assistance selection unit |
Frame | Sport aluminium frame. Sizes: XS – S - M |
Fork | Rock Shox Recon Silver 100mm |
Groupset | SRAM NX 11-gear |
Crankset | 170mm Aluminium |
Motor protection | Motor flange integrated in the frame for full motor protection |
Cassette | SRAM 11v |
Chain | KMC x11e |
Front brake | SRAM Level hydraulic, 200mm disc |
Rear brake | SRAM Level hydraulic, 180mm disc |
Tires | Vittoria - Front 27,5” x 2,25” / Rear 27,5” x 2,25” |
Rim and Spokes | Aluminium alloy, stainless steel spokesx |
Front hub | 100 mm, trough axle 15 mm |
Rear hub | 142 mm, trough axle 12 mm |
Handlebar | Double butted Alloy: L 620mm |
Stem | Rise 10° |
Headset | Double butted Alloy: L 620mm |
Saddle | Monte Grappa personalized by Fantic |
Pedals | NVL 388B, aluminium |
SIZE | XS | S | M | |
A | Seat tube length (mm) | 390 | 430 | 455 |
B | Top tube length (mm) | 565 | 602 | 612 |
C | Seat angle | 73° | 74,5° | 74,5° |
D | Head angle | 68° | 68° | 68° |
E | Head tube length (mm) | 120 | 120 | 120 |
F | Chainstay length (mm) | 462 | 462 | 462 |
